Food Photo Tips: Part 6 - Mini Light Box & Macro

14 years ago

Food Photo Tips: Part 6 - Making a Mini Light Box

Hi again everyone. I'm back with another entry on how to use your digital camera for taking tabletop photos.

This time I'm going to show how to make a miniature version of a light box, which can be useful for photographing small objects. I'm also working on making a full sized box out of a cardboard printer box which will be used for photographing larger objects, including plates and dishes of food.

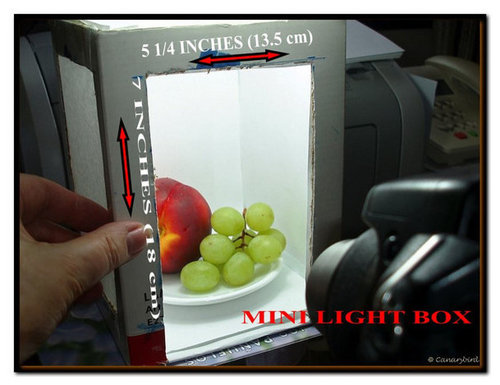

Mini box (left)

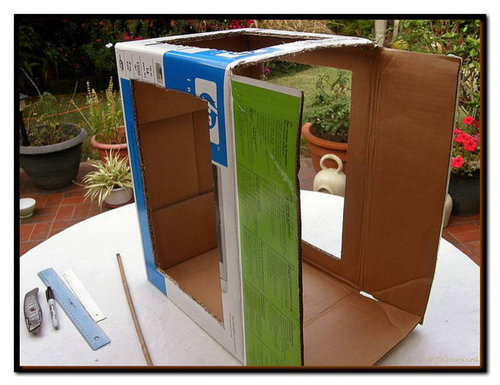

Full size box under construction (right)

But it might be easier to practise with a mini box to test your results and your skills with a box cutter or sharp scissors. If you have a handy teenager, (or other person clever with crafts and model building, who won't cut off a finger with the box cutter) you may enlist some help with this although it takes less than an hour to make, requires no special skills and doesn't have to be good looking.

The idea of a light box is to create a partially enclosed 'white room', with white walls, a white sweep (that paper background we made previously in Part 4 - Seamless Backgrounds), with cutout windows and ceiling covered with white paper, into which we project a strong overhead light and usually a light on either side aimed at the white paper windows so that any object introduced into the box will be bathed in total white light with no shadows. You will have often seen pictures on the web of an object which seems to float on a pure white background. Eg: Cook's Thesaurus. This effect can be achieved in a light box.

And it's quite entertaining to see what you can produce from this setup.

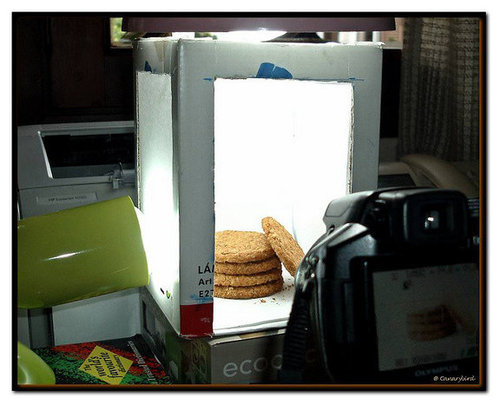

These last two pictures were taken with my 15 watt CFL desk lamp overhead and one 7 watt CFL spot lamp (that green one) at the left window. Even better would be a 2nd spot pointing at the right window. (I need to go out and buy that 2nd spot lamp...they cost about $12 here so not an expensive item and good for the mini box.)

Construction of the Mini Box:

Materials needed: small box of sturdy cardboard, box cutter or small sharp scissors, ruler or metal straight edge, pen, glue stick, white paper (I always seem to use printer paper.)

I used a small box measuring 5.25 x 7 inches (13.5 x 18 cm) that contained a little desk lamp. You can use a larger box as well of course, but your lights will have to be accordingly more powerful. And I think it's better that you keep it as a vertical box, higher than wider, so that the lid opening will be your ceiling. We can still make the bigger box later once we have caught the idea of how best to create the whitest environment.

On my little box I took off the top flaps of the lid and using a box cutter, cut out windows on the sides, leaving a frame of cardboard about 1 inch (2.5 cm) all around, except for the bottom edge of the front 'door' which I cut off.

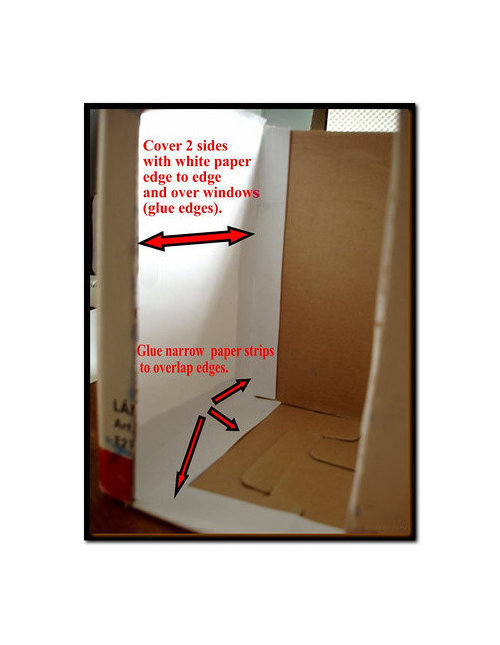

Then I took white printer paper and after cutting it to the size of one side (5.25 x 7 inches/ 13.5 x 18 cm) glued it with a glue stick into the INSIDE of a window side, then repeated that on the inside of the window facing it.

Glue carefully and smooth out any wrinkles, which would show up in your photos. To further cover the edges, cut out strips of white paper to size and overlap the newly installed white paper to the back wall and the floor, smoothing carefully so the edges are well stuck down and wrinkle free. Do this on both window sides.

Cut a paper sweep to go inside your box, but DON"T GLUE it in, just slide it in so it is removable when it becomes spotted . The measurements should be....width a little smaller than the width of your box.

In my example, with a 5.25 inch (13.5 cm) box width, my paper sweep was perfect at 1/4 inch less than the box width...that is at 5 inches wide (11.5 cm).

Length of the sweep:....start with a piece of paper a little shorter than the box height plus the box depth (from back wall to front door) and slip it into place until it reaches the edges of the door, as in the photo below.

Check that you have a nice curve in the sweep, that it reaches the 'front door' and trim off any excess that sticks up over the top at the back.

The finished box should look something like this.

Many light boxes also use a thin sheet of paper...often white tissue paper or white tracing paper over the 'roof' of the box and this will give you a soft diffused light. If you are going to photograph any reflective item of metal, ceramic or glass you won't want a reflection of the light bulb in the top lamp showing on your object, so you should then use a thin white material or paper to soften the white glare. If you have a good strong light on both top and sides you will be okay with the diffusor on top as the light will be sufficient. If the light is too strong, then move the lamps away a little from the box.

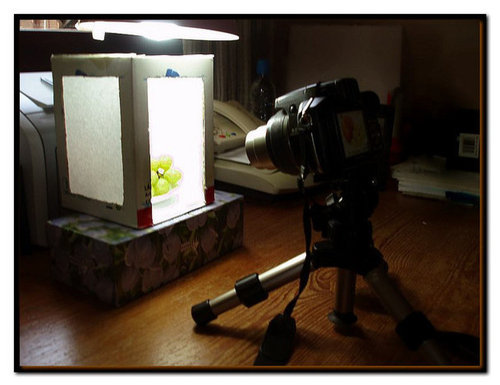

Some examples with fruit: First a sideview of the setup and one example of creating a very soft photo using Exposure Compensation (EV +1.3)... that's 4 clicks up from 0.0... to give deliberate over exposure. Here I was able to get photos using just the overhead desk lamp. If you don't have extra lamps (they must all have the same type of bulb...tungsten or CFL, not mixed) see how you can do with the overhead lamp close to the top opening of your box and raising the EV value to make the picture lighter. This you can do while looking through the viewfinder before taking the photo.

A little less raising of the Exposure Compensation, that is.... pushing it up 3 clicks (instead of 4) to EV +1.0, makes the image a little less over exposed and more defined (left photo).

With no EV changes to the picture, you would have a normal exposure, as in the second photo.

Now you know how to make misty white photos if you wish to have that effect. When you raise the EV value using the plus+, you are actually decreasing the shutter speed of your camera, so it stays open longer, lets in more light and gives you a more exposed (lighter) image. Conversely, when you lower the EV value using the minus -, you are in fact increasing the shutter speed, the shutter closes sooner, letting in less light and your image is darker.

If you manage to make this mini light box, try using a PORTRAIT setting, and maybe add a click on the MACRO option as mentioned below. Remember to set the White Balance WB for the type of bulb you are using...hopefully you have a CFL fluorescent in there, and practice using the EV button to lighten or darken your image while looking through the viewfinder.

I think this is enough for one day but I did want to introduce MACRO, or closeup photography.

If you look at the back your camera you will have noticed a little tulip icon somewhere on or near the round touchpad.

That is your option to tell the camera that you want to make closeup photos. You should be able to click on it from any of the other options that you have, such as AUTO, PORTRAIT, INDOOR. By clicking on the tulip icon you will probably bring up three options: OFF, the tulip icon representing MACRO, or another tulip icon with a small 's' beside it. Some point and shoot cameras may not have this second tulip but it refers to SUPER MACRO where you can get even closer to your subject. Try it out....remember you can still be in another mode and add the macro option. I'll explain more next time with examples of how you can capture very close, sharp pictures of food, insects and plants.

I hope you are understanding it all and if you have questions please ask here or PM me.

So thanks for joining me. I'll be uploading the next installment soon. And please feel free to save the pages on your computer.

Sharon (Canarybird) :-)
