hot air sous vide revisited

6 years ago

last modified: 6 years ago

Hi All, has anyone seriously revisited hot air sous vide? I saw one discussion here but it got derailed. I've made both a water and a hot air version, and getting the timing right for air has been interesting (every recipe is water based). I mean getting the food internals up to temp takes longer w/air, but once it is there, the systems are virtually identical.

The results w/the water one were perfect on the first try, but I'm still seeing what the air version can do, as it is more convenient (sans extra cooking time and lack of research on it). I even tried using the air one as a dehydrator (breakfast sausage @145 overnight) and it worked well, and any moisture proof conformal wrap will do for the "vide" part.

anyway here are some pics, the water one works perfectly fine with a bang-bang controller (lots of mass) but I had to make a pid controller to get the air version to behave.

Any thoughts on how to accommodate the timing differences?

more build details:

for water I just use an old plastic cooler, an $8 1000 watt immersion heater, a couple small $5 fish pumps, and an inkbird ITC-1000f that I got for $12. And even with the bang-bang control, it works really well. All that mass makes for a very stable temperature, no pid required (unless your heater is REALLY overpowered).

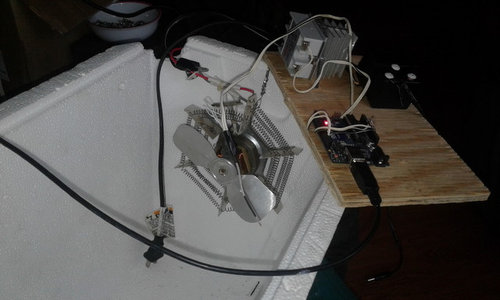

for hot air I wound up with a styrofoam cooler, a trimmed down space heater (mods: was 2x750watts, put them in series for 375 watts, shaded pole and metal fan ftw, and reworked the motor/fan setup to get it as quiet as possible and reversed the motor and spun the fan around so it blows hot air at the wall for circulation), and a thermistor out of a $1 thrift store thermometer, and a microcontroller with PID, and a 20A ssr (doesn't even get warm), duty cycle is the control variable with a period of 1 second.

Sort by:Oldest

Comments (4)

Islay Corbel
6 years ago
Never heard of hot air versions. What are the benefits?
davebdave
Original Author
6 years ago
last modified: 6 years ago
Hi Islay, fwiw the first attempts at low temp were done w/hot air.

I will take a stab at enumerating the pros/cons from my limited experiments.

Air pros:

1. don't need to fill with water (more of a problem with a cooler than a pot) and shlep. Also better for water conservation if you are into that, or for making your operation more portable.

2. in water the bag is there to prevent exposure to water, as it will dilute the flavors. In air you are trying to retain moisture, so you can use saran wrap, oiled parchment, probably foil, etc. Air is more flexible there. You still want it to catch the juices though, so don't put the seams on the bottom.

3. preheat is nearly instantaneous since air is low mass, I don't even bother pre-heating, just drop the food in and plug it in, though heater power is a factor in pre-heat time. Less energy spent on the heat transfer medium only to pour it down the drain.

4. doubles as a precision dehydrator.

Air cons:

1. The specific heat of air is much less than water. For a given set temperature it takes longer for the heat to be absorbed by the food to attain that temperature.

2. needs more complicated control scheme as temperature can change quickly, though this is a solved (affordably) problem.

3. very few people experimenting with it, and almost every recipe is geared towards a water bath these days, so while the temperature recommendation holds, the timings are way off.

4. Longer cook times will mean more energy spent on heating the food product (lots of variables).

It is an interesting experiment in thermodynamics in any event. That is probably my main motivator :)

edit: this site describes the heating difference pretty well
https://amazingribs.com/more-technique-and-science/grill-and-smoker-setup-and-firing/thermodynamics-cooking-and-how

After all your hand is made out of meat.
"Put an empty frying pan and pot of water in a 200°F oven for an hour. Open the door and stick your hand in the warm air of the oven and count how long you can hold your hand in there. Perhaps a minute? Then plunge one hand in the 200°F water and place the other hand on the frying pan. After you get back from the hospital, ponder the fact that not everything that is 200°F transfers energy at the same rate."
Related Discussions
TGFIO, Vacuum Sealer, Sous Vide, Griddle, Etc.
Q
Comments (36)
Posted by mike9 : " How large of a cooler do you recommend? " How big a cooler will depend on how much food you try to sous vide. Since the components of my system are portable, I have several container sizes, from a small one to cook a few eggs to a good size cooler for large roasts. "How much power do i need? " The pump is less than 10 watts, the rest depends on the electric heater. Remember the heater use not much power to keep the water at the set temperature. "If i had to raise that the temperature of the cooler 30-40 degrees above hot tap water then its going to take a long time with 300w. I'd have to pull out the pans boil water on the stove etc. Could say a 1500w heater be too much and have problems with overshooting? I plan on using a PID and solid state relay. " I always use boiling water to get the water bath temperature high enough. 1,500 W heater will not overshoot if you have a good enough circulator. PID controller with a solid state relay, I believe, but not sure, throttles the heater from low to high. PID will, using self-tuning, self-adjusting to compensate overall equipment overshooting. "How much power does it take to sustain the equilibrium temp after everything has been cooking for many hours? " Depends on the insulating property of your container and the size of the container. "How much power does it take to maintain the set water temperature after a bunch of frozen food has been dropped into the bath? That could be important if i have an item already cooking and then later throw something frozen in there, if the temp of the water dropped for a long time it could mess up the cooking time of the first item. " Just keep an eye on the temperature reading, add more boiling water if needed. "I was looking at these heaters. http://www.amazon.com/NORPRO-559-Immersion-Warming-Liquids/dp/B000I8VE68/ http://www.amazon.com/Bush-CH-101-Energy-Saving-Immersion-Heater/dp/B003DLB5KW/ http://www.amazon.com/Reliance-9000129-045-Electric-Heater-Element/dp/B000H5W1TQ/ " The first two not too good: 1. they are not long lasting. 2. They are not completely submersible. The third one is very long lasting, but requires you to build something around the exposed terminals to waterproof and shock-proof. ------------------------------------------- I would like to say this to those of you who may be reading this thread, do not worry about any of these tech stuff. They are not what sous vide cooking is all about. A ready-made sous vide cooker is not that expensive anymore, plug it in, set the temperature and enjoy the superior food. That is all. All these annoying tech stuff are for crazy folks like me, who hasn�t quite outgrown his toy playing delinquencies yet. dcarch
...See More
Hot Air Sous Vide?
Q
Comments (24)
Erm, no. Sous vide means vacuum packed. You're talking about a method of cooking that has evolved into something other than sous vide cooking. I understand what you're doing, but you need a better name for it.LOL THE HISTORY OF SOUS VIDE This method of cooking was developed in the mid–1970s by chef Georges Pralus (at the internationally renowned Michelin Three-Star Restaurant, Troisgros, in Roanne, France) initially as a means of minimizing costly shrinkage of and optimally cooking delicate foie gras. Chef Bruno Goussault subsequently adopted and expanded the technique to consistently provide gourmet-quality meals to first class travelers on Air France. In the last two decades, sous vide cooking has sparked a wave of culinary innovation and creativity, and has become the secret of top chefs at major restaurants around the world. With appliances such as the SousVide Supreme, this cooking technique is now affordable and accessible to home cooks. HOW TO SOUS VIDE: THE SIMPLE STEPS OF SOUS VIDE COOKING The simple steps of sous vide cooking -- Season/Seal, Simmer, and Serve—require little hands-on time to dial in perfect results every time. Season & Seal– Because the sous vide technique locks in the flavor, the food cooks in its own juices, intensifying its natural flavors. This means that you can season with a lighter hand or in many cases, after the fact. Vacuum/seal the food in air tight cooking pouches. Simmer – Drop the pouches into the precisely controlled water bath. Serve – Many foods, such as vegetables, fruits, and one-dish meals are delicious straight from the pouch. Proteins (meat, poultry, fish) are delicious out of the pouch as well, but may benefit from a quick sear in a hot skillet, under the broiler, on the grill, or with a kitchen torch to impart the beautiful golden color and savory caramelized flavor to these foods.
...See More
Don't like sous vide?
Q
Comments (73)
Artemis_ma, I had 146 written originally, but have changed it to 148 – thank you. OT: I woke up in the middle of the night last night, literally sat up, and almost said aloud “that is artemis ma’s kitchen!” Forgive me, I didn’t remember your reveal post, but I guess it’s been in my subconscious all the while… I love your kitchen (said that a while back, but worth repeating). I even remember a family member had made or found an incredible crazy-looking langolier-like (from a Stephen King book) metal creature sculpture with eating utensils which I adored! I hear you, I’m now in TN, where the humidity makes me soaked after 10 minutes outside. I loved NM, the heat so dry… but DH is here, so I am : ) Plllog, you have a good point. I was thinking if there were followers, or later someone searching, they’d like to hear a newbie’s experiences, but yes, this is a long thread now, and many might skip over some of this invaluable information accidentally. I’ll start a new thread but include reference to this one. I’m (again) saving your comments. I need to write all this out in a notebook – writing it again will help me remember without having to look up things every time. I put a towel over and around the container with my long-cook meat yesterday and had been watching the water level like a mother hen : ) Sherri, I’ll keep your comment in mind about fast sears. See? These types of learning experiences are so helpful and I feel others can also benefit! That’s what I’d read Islay! Endive with butter and ginger? Instant gratin? My brain is in joyful overload! Bragu, I’d never have thought of that combo, ever… will now! Sleeve, I think I will start a new thread.. Yes, I will put sous vide in the title : ) “In a 'part-2' thread I'd like to hear some recipes.” – Last night I was thinking the same thing! I’ll make that request and share what I’ve got thus far (which isn’t much, but it’s a start!). Ha! There’s a very happy dog at your home! Did you smile or grumble? I’d have done both! Ah, so you use it for lunches and tacos! Or were going too.. Oh my, that London broil… I hope I’m not sous vide’ing (OK, how do you say it???) the round sirloin tip roast too long… oh well, trial and error! Sleevendog, I know I sound dense, but to clarify: You had a London broil that had been sous vide earlier, then you smoked it 45 minutes at 180-200 F to finish? Because, I’m thinking I can get (even in this heat) the weber and pellet tube at 200 F… I have yet to pre-sous vide and freeze anything – because I need to get my times and temps down before doing several at once. This is so embarrassing, but it’s the only way to learn: I looked for a London broil last Tuesday - but I was also looking for Top Round (which I also couldn’t find). Now I understand London broil is Top Round or Flank Steak or the way it’s prepared??? I bought the ‘round sirloin tip roast’ because it was cheap, and have never bought one before (it’s about the same thickness I think as Sleeve’s London Broil pic). It’s my understanding the top round is more tender than the sirloin tip, but the sirloin tip has some flavor. I’ve stared at photos of cow cuts, read multiple beef articles and my brain is now sous vide! If anyone can clarify what a London broil is, I’d appreciate it!
...See More
Sous Vide Cont’d: A Newbie’s Experiences; Please share Tips & Recipes!
Q
Comments (129)
Since there seems to be some renewed interest by those who’ve yet to try sous vide, thought I’d add a few comments/observations… For me, the most wonderful thing about sous vide is the ability to take a cheap cut of meat and make it tender and tasty – and cook it to perfect mid-rare (our preference). Whether it’s Select steaks on sale for DH and I to enjoy and feel as if we’re dining on quality steak on a weeknight, or finding some cut at the grocery which I’ve no idea what it is and SV’ing, then slicing for a fantastic lunch meat or a quick dinner sandwich… it’s amazing what the SV can do with cheap cuts… Second most wonderful thing for me: Bulk SV’ing (thanks to Sleevendog). I SV and freeze several pork chops to thaw, reheat in the SV, sear and serve; chicken to make salads and sandwiches. And DH’s favorite weeknight meal: Several cheap steaks in bags of 2, mass SV’d to desired doneness. Drop in ice bath, label, then freeze. I only need to remove a couple from the freezer, pop in the SV at one degree under the temp initially cooked, it thaws and reheats in about 45 minutes, and meanwhile I whip up a quick sauce, some veggies, and finish by searing off which also helps to heat the steaks. Makes for an easy weeknight meal. Below is a Select New York Strip, little to no marbling (uber-cheap cut), with a (too thick) peppercorn sauce. It was quite good! And my embarrassing confession: I can prepare fish and seafood… but for some reason I can’t consistently make it come out perfectly cooked. Sometimes my shrimp or scallops are a wee bit on the too done side. Same with salmon (as mentioned above). Sure, should be easy for many, but for me? Eh. So SV to the rescue. I made this scallop dish last summer and while the scallops were in the SV for their 30 minutes I fried up baby kale, baked my maple glazed bacon, sliced the tomatoes and avocados, and made a sauce for BLT Scallops. Seared off the scallops for 15 seconds, sliced in half, assembled, and they were perfection. To those who scoff and say they can sear a scallop in moments, I say great for you, but I can’t and know beyond any doubt they won’t be under cooked or overcooked. With SV I can : ) fillmoe, and anyone else interested, have fun and enjoy!
...See More
dcarch7 d c f l a s h 7 @ y a h o o . c o m
6 years ago
Very interesting setup and experiments.

Sous vide using air, it's about the same as modern convection oven with digital temperature control.

Yes, air sous vide's biggest problem is getting the food to set temperature, especially with larger piece of meat from the refrigerator. The way to overcome that is to microwave the food at very low power until the temperature gets to almost set temperature. Once it is there then the cook time will not be that much longer then sous vide with water.

I see your set up, using a controller similar to the Romeo-All in one Arduino Controller, driving a SSR to bang-bang control a stove heating element.

My suggestion: possible serious fire hazard. If one of the components fails, the heating element can quickly start a fire inside the plastic foam box. I would use a mechanical relay instead of a SSR. When the system fails, a SSR shorts and continues to feed full power to the heating element, the opposite to a mechanical relay.

2. For water sous vide system, you need a very low power heating element. Either series connect a diode ($2.00) to the heating element and cut the power in half or buy a 220v water heating element ($10). A 2000 watt element becomes 500 watts when voltage is cut in half.

dcarch
davebdave
Original Author
6 years ago
last modified: 6 years ago
Hi dc! microwave is a good tip, I will have to try that perhaps, don't have a proper convection oven, but if the two play well together I may re-evaluate.

re: 2 With a cooler half full of water, bang bang seems to work just fine with the 1000 watt heater, but yes if you reduce the water(mass) or increase the heater power you need better control, which is simple enough.

the air one is a custom script on an arduino with PID logic added (and a timer) in a script I slapped together, after sorting out the thermistor. the water one is just a bang-bang, and I went the pid route when I saw how much fluctuation there was using bang-bang with air. Though no reason not to retrofit the pid to the water one.

re 1: fire hazard, granted this isn't "consumer grade", one of reasons I put the elements in series is that even if it fails on the nichrome should only get to about 450F (but it is in a heated environment so it will feed back...). It gets close to the melting temp of polystyrene, but below the ignition temp, so it should buy you some time in any event. Like halving the voltage, putting two 750 watt elements in series results in 375 watts (and 1500 watts in parallel). I don't recommend a diode though, that is taking something with fairly perfect power factor and completely ruining it. Though an ssr isn't perfect either, it is distributed through both halves of the cycle, and adding a diode may ruin zero cross detection (i.e. it gets stuck ON).

Though I wouldn't use a relay for cycling at 1hz(edit, or for controlling duty cycle, as the ssr has 120 "power" levels per second), I may add one that controls the fan which can also feed the ssr and as long as the logic is still functioning it can take appropriate measures.

but it is still proof of concept so not going to go overboard on the safety refinements without more consistent results, the air unit just sits next to my desk so it is not unattended at the moment.
