Sous Vide rocks! Thanks dcarch & FOAS

10 years ago

Many thanks to dcarch and FOAS--I got my sous vide up and running last weekend, and it's great. Everything I cooked in it so far has come out tender and juicy. I'm using dcarch's info and FOAS's advice, and my only contribution is to point out current sources for the parts you need. If you're interested in making one, you can probably cobble together one for under $100 including an Igloo cooler. You may have some of this stuff around the house anyway, so your cost may be even less.

You can buy a ready made sous vide setup for $400-$500, but if you want to make a contraption like this, it's really easy. The heart of the rig is a STC-1000 temperature controller. You can get them online for $15 to $20. For this application it functions basically as an 'open on rise' thermostat: when a temperature is reached, it cuts the power to the heater element. The heat is provided by a 500w aquarium heater element. These are available online for $30-40. (you want the kind without a thermostat; you'll be using the STC-1000 as a thermostat). Another item you might want is a small submersible dc high temp water pump; I got one online for $18. You'll need a cooler, but you probably have one around the house anyway; I got a Igloo Marine 25 qt cooler for about $19 at Walmart. You can get whatever size you think you might want, and the guts of the system are easily moved from one cooler to another if you need a bigger setup.

You'll also need a few inexpensive items to wire it up: an electrical handy box ($2), an electrical outlet ($2), a faceplate, and some sort of enclosure. For a power cord, I used a polarized two-prong extension cord and cut off the socket end; I used a foot of that cord for hookup wire in the box. I also rigged up a little rack made of CPVC pipe to attach the pump. That way I'm not making any attachments to the inside of the cooler.

The STC-1000 is often used by homebrewers to control the temperature of a refrigerator for precise fermentation. It can turn on either a heating element or a cooling element. You can download wiring diagrams for the STC-1000, and if you do just ignore the cooling circuitry--you're only going to be using this to control the heater.

Here are the specific items I obtained:
STC-1000 Available from several places-- you might save a few bucks if you order it on eBay from China:
http://www.amazon.com/AGPtek-All-purpose-Temperature-Controller-STC-1000/dp/B00862G3TQ

Aquarium Heater element without thermostat:
http://www.amazon.com/Finnex-Deluxe-Titanium-Heating-500-Watt/dp/B002TMTGGQ
(or something similar. A 500w heater brought my water bath from room temp to 131 degrees in a little over an hour, then maintained it +/- 0.5 degrees thereafter) See if the kind you get has little suction cups to mount on the inside of the cooler

Circulation pump--not absolutely necessary, but it'll ensure a stable temp throughout the cooler:
http://www.ebay.com/itm/250722722452?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1497.l2649

This is one of several small submersible DC pumps available online. Make sure you get one that says 'high temperature--you can't just use an aquarium pump as they aren't made to operate at sous vide temperatures. Google 'submersible DC pump suitable for sous vide' and you'll get lots of hits.

You might need a power supply for your pump. This one works well, and you can select your voltage to match your pump ( although you might have a suitable wall-wart transformer around the house). If you cut into the black cord, you'll find a black and a red wire so it's easy to match the polarity of your pump:
http://www.amazon.com/Velleman-PSSMV1USA-3-12Vdc-Switching-Supply/dp/B00068U44I/ref=sr_1_1?ie=UTF8&qid=1390410775&sr=8-1&keywords=velleman+power+supply

This really is a fun project. If any of you have any questions, let me know. I guarantee if you like rare or medium rare steaks, you'll love how the stuff comes out of this cooker.

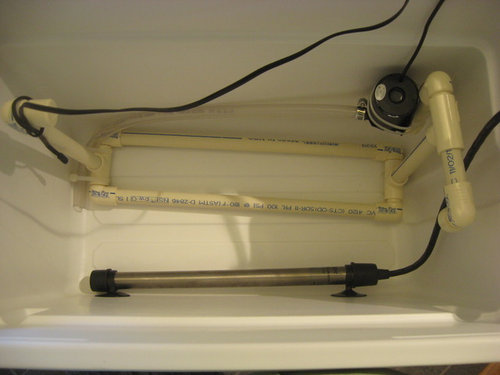

Here's the inside of the cooler. The long silver thing at the bottom with the suction cups is the aquarium heater element, the black cylinder at the upper right is the pump, and the cord to the left is the temperature probe that goes back to the STC 1000. The rack is made of CPVC, and the weight of the pump is enough to keep it from floating. But if you make a bigger one, you might need to put sand or gravel in the pipes to keep it from floating. Finally, so that the food pouches don't touch the heater element directly, I bent an aluminum soffit vent (about $2) to shape to make a guard over the element.

Comments (15)

dcarch7 d c f l a s h 7 @ y a h o o . c o m
10 years ago
last modified: 9 years ago
Arley, very exciting! You have done a great job putting the system together.

A few ideas:

You can buy 120Vac fountain pumps cheap, around $10.00. This way you don't need a low voltage DC power supply.

You may not need to pay for a high temperature fountain pump. I have my aquarium pump running as high as 182F without failing for over two years. typically you would be cooking below 160F.

I use a hot water tank heating element for my heater, $12.00. The heating element is for 240V 2,000 watts. Runing it at 120V, it becomes 500 Watts.

There is a lot of excitement in the cooking world. Recently there were several sous vide circulators came on the market for under $200.00.

In addition to enjoying perfectly cooked food, you will be saving money because you can work with lower priced cuts of meat, as well as meat cooked sous vide has much less shrinkage. it's like having a 5% discount always on all meat purchases.

dcarch
Teresa_MN
10 years ago
last modified: 9 years ago
Arley - be sure to post pictures of the results! The method has always intrigued me. I no longer cook enough meat or larger portions of anything so I have not attempted to build one myself. I always enjoy seeing Dcarch's accomplishments however.

Teresa
Related Discussions
TGFIO, Vacuum Sealer, Sous Vide, Griddle, Etc.
Q
Comments (36)
Posted by mike9 : " How large of a cooler do you recommend? " How big a cooler will depend on how much food you try to sous vide. Since the components of my system are portable, I have several container sizes, from a small one to cook a few eggs to a good size cooler for large roasts. "How much power do i need? " The pump is less than 10 watts, the rest depends on the electric heater. Remember the heater use not much power to keep the water at the set temperature. "If i had to raise that the temperature of the cooler 30-40 degrees above hot tap water then its going to take a long time with 300w. I'd have to pull out the pans boil water on the stove etc. Could say a 1500w heater be too much and have problems with overshooting? I plan on using a PID and solid state relay. " I always use boiling water to get the water bath temperature high enough. 1,500 W heater will not overshoot if you have a good enough circulator. PID controller with a solid state relay, I believe, but not sure, throttles the heater from low to high. PID will, using self-tuning, self-adjusting to compensate overall equipment overshooting. "How much power does it take to sustain the equilibrium temp after everything has been cooking for many hours? " Depends on the insulating property of your container and the size of the container. "How much power does it take to maintain the set water temperature after a bunch of frozen food has been dropped into the bath? That could be important if i have an item already cooking and then later throw something frozen in there, if the temp of the water dropped for a long time it could mess up the cooking time of the first item. " Just keep an eye on the temperature reading, add more boiling water if needed. "I was looking at these heaters. http://www.amazon.com/NORPRO-559-Immersion-Warming-Liquids/dp/B000I8VE68/ http://www.amazon.com/Bush-CH-101-Energy-Saving-Immersion-Heater/dp/B003DLB5KW/ http://www.amazon.com/Reliance-9000129-045-Electric-Heater-Element/dp/B000H5W1TQ/ " The first two not too good: 1. they are not long lasting. 2. They are not completely submersible. The third one is very long lasting, but requires you to build something around the exposed terminals to waterproof and shock-proof. ------------------------------------------- I would like to say this to those of you who may be reading this thread, do not worry about any of these tech stuff. They are not what sous vide cooking is all about. A ready-made sous vide cooker is not that expensive anymore, plug it in, set the temperature and enjoy the superior food. That is all. All these annoying tech stuff are for crazy folks like me, who hasn�t quite outgrown his toy playing delinquencies yet. dcarch
...See More
Sous Vide, take 2, 3, 4...
Q
Comments (6)
Very interesting post, FOAS. Thank you for taking the time to do the experimentations/investigations. Your efforts definitely will further everyone's knowledge in this Forum. Ultimately that is a very important part for the participation here. It is interesting that you have had mixed results. Let's look at it this way; at least it was not a total lost for you. Obviously your experience is not the same as mine. That is not to say that you have done anything wrong or you don't have good taste. Eating experience is very subjective and details for preparation can be unpredictable. I have been luckier. I have sous vided many kinds of foods. As I can remember, the biggest failure I had was with squid. My timing was wrong and the squid turned into mush. Otherwise all meats, all seafood; lobsters, clams, fish, scallops --- all were from good to fantastic. Unlike you, I had great results with shrimps, but I did my shrimps at 138 F for 25 minutes, and I was able to get very fresh shrimps, not the chemically treated ones you now find in stores. I can only suggest to you, given that fact that if you search the WEB you will realize the practice of sous vide cooking is more than just a fashion trend, that you may want to play with it a few time times before giving up. I am not going to discredit Jonathan Gold's opinion about sous vide, after all he is a Pulitzer-price winning writer. However, I do humbly disagree that a perfectly cooked piece of meat is by definition boring. No one eats a steak directly as it comes out from the cooker, there are other preparation steps before the steak is to be served. Off-topic, I noticed that Costco is now selling sous vide cookers. I must point out again that sous vide only guarantees that you will not overcook or undercook your food, but it cannot guarantee that your food will taste good. It is like having a fancy grill will not automatically give you great BBQ. I might also add that sous vide cooking for chefs is not necessarily easier than regular cooking, but that's another topic all together. dcarch
...See More
Racking Up Sous Vide's Pros/Cons, Reprise
Q
Comments (10)
Posted by annie1992 "I don't like lamb in any form, so won't conjecture on the proper cooking of it. (grin) ----" Annie, I didn't use to like lamb at all, until they start charging a lot of money. Expensive = taste good ? LOL FOAS, thank you. I look forward to seeing more of your sous vide creations. Alexa, at the risk of being accused of anti Occam's Razor law, let's take a little time to chew the fat. First, the pictures might be a little misleading. I take food pictures using only the auto setting on my camera to save time. Depending on if the light is from the window (day) or from the CFL (night) or if the shot is wide-angle or close-up and the predominant color of the food item, the camera's built-in software takes charge and determines the red/white/blue balance for each picture. The colors on the first two are closer to the real thing. Rack of lamb, very expensive. If you take away the fat, and the bones, and shrinkage, it probably comes to $60.00 a pound here in NYC. Meat, bones and fat have different thermal conductivities, adding to it, the small size and the shape of a rack of lamb, it makes it very difficult to cook it perfectly unless you prefer the whole thing well-done. It is challenging to find a way to maximize perfection to every tiny morsel of this wondrous victual. At the temperature I set at 135F, it is too low to render the fat. Since I don�t eat the fat, it does not bother me just to scrape the fat off while I eat. But if I were to serve others who are not followers of the Paleolithic diet, I probably BBQ the fat a little longer and that will make the issue go away. No, you cannot make Schmaltz using a sous vide cooker. I think it needs to be emphasized that sous vide is merely a particular way of cooking with a special appliance. There is really no recipes for sous vide, no more than recipes for microwave, or cast iron frying pan, etc. It is unfortunate that the French word "sous vide" gives this concept a lot of unjustified mystique; the fact that top chefs and upscale restaurant use it makes it appearing un-approachable. It makes it seem like practitioners of this way of cooking belong to some religious cult. The truth is this: sous vide is just a water oven that can keep constant temperatures. If I were to name this appliance, I would call it "Cookware For Making Perfect Meats For Dummies" If you show a 10-year-old kid how to set the temperature, the kid can cook the meat sous vide just like a top chef. A sous vide cooker simply will not allow you to overcook or undercook, it makes no difference if your piece of meat is frozen on one half and the other half at room-temperature, thick on one end and thin on the other end. No doubt, sous vide is going to go thru similar fade as the microwave oven did. First microwave oven was scosting like $5,000 and there were many myths and fears surrounding these bizarre new electronic "radar ranges." By the seventies, more and more people were finding the benefits of microwave cooking to outweigh the supposedly risks, and none of them were dying of radiation poisoning, going blind, becoming sterile, or impotent. As fears ebbed, acceptance began pouring into the kitchens. dcarch
...See More
Hot Air Sous Vide?
Q
Comments (24)
Erm, no. Sous vide means vacuum packed. You're talking about a method of cooking that has evolved into something other than sous vide cooking. I understand what you're doing, but you need a better name for it.LOL THE HISTORY OF SOUS VIDE This method of cooking was developed in the mid–1970s by chef Georges Pralus (at the internationally renowned Michelin Three-Star Restaurant, Troisgros, in Roanne, France) initially as a means of minimizing costly shrinkage of and optimally cooking delicate foie gras. Chef Bruno Goussault subsequently adopted and expanded the technique to consistently provide gourmet-quality meals to first class travelers on Air France. In the last two decades, sous vide cooking has sparked a wave of culinary innovation and creativity, and has become the secret of top chefs at major restaurants around the world. With appliances such as the SousVide Supreme, this cooking technique is now affordable and accessible to home cooks. HOW TO SOUS VIDE: THE SIMPLE STEPS OF SOUS VIDE COOKING The simple steps of sous vide cooking -- Season/Seal, Simmer, and Serve—require little hands-on time to dial in perfect results every time. Season & Seal– Because the sous vide technique locks in the flavor, the food cooks in its own juices, intensifying its natural flavors. This means that you can season with a lighter hand or in many cases, after the fact. Vacuum/seal the food in air tight cooking pouches. Simmer – Drop the pouches into the precisely controlled water bath. Serve – Many foods, such as vegetables, fruits, and one-dish meals are delicious straight from the pouch. Proteins (meat, poultry, fish) are delicious out of the pouch as well, but may benefit from a quick sear in a hot skillet, under the broiler, on the grill, or with a kitchen torch to impart the beautiful golden color and savory caramelized flavor to these foods.
...See More
kitchendetective
10 years ago
last modified: 9 years ago
I thought the heading of this thread meant you could sous vide rocks, which I thought dcarch had probably already tried.

Anyhoo, very useful information, but I, too, would like to know what you prepared.
dcarch7 d c f l a s h 7 @ y a h o o . c o m
10 years ago
last modified: 9 years ago
"---I thought the heading of this thread meant you could sous vide rocks, which I thought dcarch had probably already tried.---"

LOL!

Almost. I shared a 2" think prime rib with a friend tonight. The rib was frozen like rock.

The rock hard beef was put into the sous vide cooker direct. No need for thawing.

I asked my friend with a chart showing beef cooked to various degrees of done-ness, "What color would you like?"

"This one"

I set the control to 136F, and the meat came out identical to the one shown on the chart. Perfectly uniform.

dcarch
kitchendetective
10 years ago
last modified: 9 years ago
Oh my! How wonderful. I love that chart idea. I shared an office with a poet once. He had worked as a gopher for an interior designer. On his first day there, the ID produced a fandeck of paint colors, pointed to a taupe-camel color, and said, "Bring me a Starbucks this color!" He thought she was a jerk, but I thought it was a brilliant way to communicate how she wanted her coffee.

How long did that steak take?

This post was edited by kitchendetective on Wed, Jan 29, 14 at 8:40
dcarch7 d c f l a s h 7 @ y a h o o . c o m
10 years ago
last modified: 9 years ago
You can also get an egg chart (see link) to have eggs cooked exactly the same way every time to specification, it does not matter how cold/hot/big/small the eggs are.

The sous vide system can be set up to do anything which will require exact temperature control, such as making yogart, hatching eggs, pasteurize eggs (for ice cream raw eggs), pasteurize milk, proofing bread, starting seeds, ---------.

The steak took me about 8 hours. I like to serve steaks as hot as possible without overcooking. The sous vide method does not require resting.

This is how it works:

Since you cannot overcook the meat, you can take the time to prepare every other sides, then when it's time to eat, you tell everyone to sit down and fire up the cast iron skillet. I normally get the skillet to about 520F with an IR thermometer.

Sear the steak about one or two minutes each side, get the house to smell real good.

Perfect timing. Served hot !!!

dcarch

Here is a link that might be useful: {{gwi:1476728}}
arley_gw
Original Author
10 years ago
last modified: 9 years ago
Notice that cross section: it's medium rare from edge to edge. No way you can get that with conventional cooking. Also, since you're not heating the meat to the point where you get contraction of the muscle fibers, it's appreciably more tender than you would expect.

And another advantage, as dcarch alluded to, is the timing of the cooking is not critical. Once it's done it won't get overdone because the temperature is fixed. You can get everything else done, and then sear the meat and serve.
arley_gw
Original Author
10 years ago
last modified: 9 years ago
Here's a pic of some beef filet. It was frozen and fell behind something else in the freezer two years ago; fortunately it was wrapped fairly tightly so there wasn't any appreciable freezer burn. Unwrapped it, seasoned it, put it in a vacuum pouch, then put it, still frozen, in the sous vide cooker and left it alone for about 26 hours; took it out of the pouch, seared it in a skillet, and sliced it and served with some mushrooms. Easy peasy.
dcarch7 d c f l a s h 7 @ y a h o o . c o m
10 years ago
last modified: 9 years ago
Very nice! Actually, because you used the camera's flash so that color kind of pale. But looking at the other plate, I can see how perfect the beef came out.

Yes, I love being able to go from freezer to cooker, no thawing and end up with perfect steak.

And for comparison, typically beef filet done the regular way.

dcarch

Here is a link that might be useful:
achauer
10 years ago
last modified: 9 years ago
How delightful to come across this thread by chance! I have just this week started experimenting with sous vide. I'm using Anova's $200 water heater/circulator, which you can stick in any stockpot or other handy container. My tri-tip could have been better, but the salmon and the chicken came out fantastically.
dcarch7 d c f l a s h 7 @ y a h o o . c o m
10 years ago
last modified: 9 years ago
Achauer, welcome to the Cooking Forum!

There is so much excitement in the cooking world, with many affordable sous vide circulators on the market recently.

In addition to Anova, there are Nomiku, Sansaire and PolyScience Creative, etc.

They are around $200 buying direct from the manufacturer.

Hope to see more of your sous vide creations here.

dcarch
kitchendetective
10 years ago
last modified: 9 years ago
I liked the looks of the Anova, but am I correct that it is 199.00 from manufacturer and 450 from Amazon?
dcarch7 d c f l a s h 7 @ y a h o o . c o m
10 years ago
last modified: 9 years ago
"------but am I correct that it is 199.00 from manufacturer and 450 from Amazon?"

That's why I said buy direct from the maker.

dcarch
kitchendetective
10 years ago
last modified: 9 years ago
Wow! Talk about mark-up.
foodonastump
10 years ago
last modified: 9 years ago
The one on Amazon is a "used offer". By the comments, it sounds like Anova has had a significant price drop, possible the seller doesn't realize this.

Funny story - a few weeks ago I was watching the Rachel Ray show (accidentally, to be sure) and she did a segment where they had given new gadgets and devices to regular folks for them to use for a bit and review. One was a sous vide system (nomiku) and the woman hesitantly said she wasn't very impressed. Well, it turns out she was putting hamburger patties in a bag, sous viding and then serving, just like that LOL. (They gave her a brief lesson and let her keep it a bit longer.)

Anyway it's not surprising that these things are coming down in price a lot. Cheap technology, just a matter of putting it together into an appealing package and marketing it.

Arley, I'm glad you finally got yours going and are excited about it!

This post was edited by foodonastump on Fri, Feb 7, 14 at 18:57
