Food Photo Tips Part 7: Macro, Closeups & Camera Icons

Hi again everyone. I'm back with another entry on how to use your digital camera for taking tabletop photos.

Today I want to again go over shooting closeups or macro photos, as well as explaining the use of some of those icons on your camera.

Icons for MACRO and SUPERMACRO

The term macro when used with photography refers to making small objects look larger through the lens of your camera.

Point and Shoot cameras have a normal focal range within which objects are in focus, that is, the camera is able to see your subject clearly and record a sharp image. However if you get too close to something the camera is no longer able to focus. By using the MACRO function on your camera you are able to get a closer shot .

You may have found that when you try to get a closeup picture of something on a table or even a closeup of a flower, the result is blurred, even though you braced the camera on the table or used a tripod and had enough light. Depending on your camera you were perhaps too close to the object for the camera to be able to successfully focus. Many digital cameras have a flashing focus light which you can see in a corner of the viewfinder or on the LCD screen to warn you that the camera could not focus properly while you attempted to take a closeup photo. You have to then move backward a little or switch on your MACRO mode. Remember that you should always press the shutter button half way to let the camera focus on your subject before pressing it fully. If the light begins to flash as you do that halfway press, then you know the photo will be out of focus unless you change something. Either move further away or turn on your MACRO setting, press halfway again and your focus lamp (that light in the screen corner that flashes) should stop flashing. It should stay fixed and give a little beep to tell you that it now has the subject in focus and you can finish pressing the shutter.

Note: don't confuse the FOCUS light with the FLASH symbol because they can both blink. The flash symbol is a red thunderbolt, which if blinking, indicates there is not enough light to take an optimum photo.

Examples of using PORTRAIT mode without MACRO when camera was too close to be within focal range, and then the same setup using PORTRAIT and MACRO mode.

Some cameras have SUPER MACRO which allows you to get very close to your subject, where in some cases the camera can be placed less than an inch away from the subject.

I'll show some examples: Coins in PORTRAIT mode without macro, then with MACRO, then with SUPER MACRO.

Here are a couple of cameras owned by forum members with their focal ranges (distances at which things will be in focus.)

The Kodak Easy Share DX 6490 - this camera will focus normally from infinity down to 2 feet away from the subject. If you want to get closer than 2 feet to that piece of blueberry shortcake, you will have to turn on your MACRO mode (it may also be termed CLOSEUP mode). The macro mode on this camera will focus from 2.3 feet down to 4.8 inches.

So you should get a sharp picture within that range.

Canon Powershot SD880 IS - another member's camera. This one can get as close as 1.6 ft in a normal mode setting. Closer than that and you have to turn on your MACRO mode which has a focal range of 1.6 feet down to 0.8". That means you could put the camera a little less than one inch away from your subject. That would be too close for food photography but you can try it at a distance of 1.6 feet and see how it turns out.

On my Olympus SP560 UZ the macro and normal settings have the same focal ranges, which is 3.9" to infinity (10 cm to infinity.)

So when I want to get really close I use the SUPER MACRO setting which gets as close as 0.4" (less than a 1/2 inch). Good for insects, flowers or miniature items.

On the little pocket-size Olympus Stylus 800, the normal focal range is from infinity down to 19.7 inches. If I want to get closer than 19.7 inches to my subject, I have to turn on MACRO mode, which is good down to about 8 inches away.

Closer than than I would switch on SUPER MACRO if it were appropriate for the photo. Examples with this pocket camera are the photos of eggs,above.

You should be able to use macro in several of your cameraÂs SCENE settings appropriate for a closeup photo , such as PORTRAIT, INDOOR, CANDLE, DOCUMENTS, AVAILABLE LIGHT, CUISINE, but not in pictures where distance is a necessary factor in the photo. (Landscape, landscape and portrait, fireworks, sunsets etc.)

Try setting your camera to PORTRAIT mode and prepare a plate of fruit or other food. Set the WHITE BALANCE (WB) and if not during daylight, to the type of lighting you have. If the picture through the viewfinder (or LCD screen) looks dark, then use the EXPOSURE COMPENSATION (EV) button to get a plus factor until the picture through the viewfinder looks good. Take a picture. Then holding the camera in the same position (or with your tripod) switch on the same options plus the MACRO (or closeup) mode. Take the photo again and compare the two. Or better still, take several because itÂs a fact that the more you practise and the more photos you take, the better they will become.

If you continually experience blurry photos it might be a good idea to check out your normal focal range in your (shudder) manual under ÂspecificationsÂ, ÂMacro Mode Shooting", or go online to *one of the websites that does reviews* and look at the specs for your camera model. There you will see the normal focal range (it may be called Âshooting range or Âmacro/close-up modeÂ) as well as the MACRO range.

*A couple of good websites for checking out details of your camera are: SteveÂs Digicams as well as DP Review. But the easy way to check it out is to get close to your subject, half press the shutter and if the focus light blinks, move back and repeat pressing the shutter until you find a distance where the light no longer blinks.

That will be the focal limit of your normal range. Closer than that you will need to switch on MACRO.

Other reasons for blurry photos are:

1. Not enough light. The camera needs more time to focus in low light and during that time you or the subject have moved. Use a tripod. This is true especially for indoor or evening photos, and when using night scene options on your mode dial.

2. Camera shake. Even though you have strong light your photos are still blurry. You are moving the camera or your subject is moving. DonÂt move the camera when you press the shutter button. Hold arms tightly to your sides, brace yourself against a wall, rest the camera on a solid object or use a tripod. If necessary, breath out and hold it while you press the shutter! (Remember to breath in again please.)

Leaving MACRO for now, I wanted to go over the BUTTON OPERATIONS and THE MODE DIAL to briefly go over what some of those icons mean and what will they do when you click them into action.

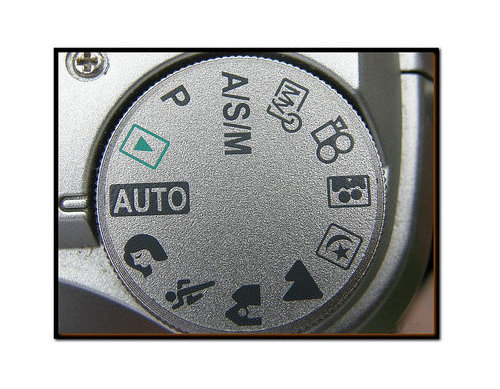

HereÂs a typical MODE DIAL, found on the top right of a digital camera

When you turn this dial and select a mode, you are telling the camera to change the settings for a certain situation. Some cameras will have some of these icons together on a separate mode entitled SCENE Âor SCN on the mode dial.

Typical mode choices found on the top of a modern camera dial are for :MOVIE, AUTO, CHECK PICTURES (Review), GUIDE, MY MODE, and M, S, A, P for choosing MANUAL, SHUTTER PRIORITY, APERTURE PRIORITY and PROGRAM.

The photo shows icons for an older digital camera where some of the scene options were included there rather than in an in-camera menu. HereÂs what they mean:

AUTO Â The simplest of all shooting modes, the settings are fully automatic. The camera selects what it deems to be the optimum focus and exposure for your still picture.

PORTRAIT - suitable for taking a portrait style photo; the camera sets a wider aperture (lens opening) to blur the background a little, so the subject stands out clearly from the background.

SPORTS - suitable for fast action shots, in this mode, the camera sets a faster shutter speed to catch moving objects such as people in sports events.

LANDSCAPE & PORTRAIT Â the camera sets the optimal shooting conditions for a background scene with a subject in the foreground.

LANDSCAPE Â the camera will use a small aperture (lens opening) to be sure the whole of the photo will be in focus, from foreground to background.

This is the opposite setting to PORTRAIT where the background is deliberately blurred. Blues and greens are enhanced in this setting.

NIGHT Â this is where you will need a tripod because the camera will use a slow shutter speed, meaning that any movement while the shutter is open will create a blurry photo.

You can have some interesting results with coloured lights and portraits in night scenes. Do play around with this mode and see what comes out from your inventiveness.

SELF PORTRAIT Â hold the camera at armÂs length and turn it toward you to take a photo of yourself. A fun mode.

MOVIES Â the camera sets aperture and shutter speed for optimum results for taking movies. You may have to click on the microphone icon in one of your menus to include sound.

MY MODE Â perhaps not seen on all cameras, this mode allows you to save a group of settings of your choice which can be recalled together with one click.

PLAYBACK MODE Â allows you to go back and see the photos youÂve just taken.

APERTURE PRIORITY Â also seen as AV on a mode dial. This setting lets you set the aperture setting manually while the camera chooses the appropriate shutter speed for that aperture (lens opening).

SHUTTER PRIORITY Â also seen as Tv on a mode dial. This setting lets you choose the shutter speed manually while the camera chooses the appropriate aperture for that shutter speed.

These two above settings are semi-automatic in that you have control over one or the other function. For example if you want to photograph sports and you know you need a fast shutter speed and donÂt want to rely on the automatic sports mode, then you would use the SHUTTER PRIORITY setting and let the camera choose the appropriate aperture. If you want to set a certain aperture setting but let the camera figure out the shutter speed then you would choose APERTURE PRIORITY. You can control the DEPTH OF FIELD, or the blurriness of the background where you want the background to recede and a subject in the foreground to stand out sharply by using a wide aperture setting.

We could perhaps go in the next tutorial or so a little into DEPTH OF FIELD because I think many folks would like to learn how to get that beautiful effect of a single flower or piece of cake (!) standing sharply against a dreamy blurred background.

PROGRAM MODE Â With just a little more freedom to be creative than the AUTO mode, here the camera sets both the shutter speed and the aperture, allowing you to adjust other functions such as white balance, ISO.

I think this has been very long today so although we havenÂt got much more to cover in the next two or three tutorials (I thought weÂd finish with ten all together), I think next time IÂll go over the FLASH icon and FLASH menu as well as the SELF-TIMER option which lets you jump into your photos. Subjects IÂd like to mention: Depth of Field and how to make those beautiful Blurry Backgrounds, the important triangle of variables that you need to know: APERTURE, SHUTTER SPEED and ISO, how they work together and how to adjust themÂ..or at least understand what is happening.

And oh yesÂ.I have to finish that full sized LIGHT BOX so we can see what results we can get from that!

I hope you are understanding it all and if you have questions please ask here or PM me.

So thanks for joining me. I'll be uploading the next installment soon. And please feel free to save the pages on your computer.

Sharon (Canarybird) :-)

(All text and photos copyrighted)

Free for personal, non-commercial use
