Need ideas and help: New build "fairytale" roof issues?
Hello! We have 2 roof concerns
on this plan of ours.
1)The main gable in the center must be corrected to remove the radius curve that is so charming. :) .The lumber yard says they just cannot provide the needed materials at a decent price unless we straighten out that gable. So we are planning to do just that. My question is how much higher do I need to bring the peak in order to properly extend the eaves the desired 30" but not block the sun - the angle of the radius roofline swooped up to allow light into those spaces.
2) The great room/primary wing roof intersection has some issues: The roofline looked okay on the simple elevation, but once I had them rendered, there was a certain area "behind" the library that connected the great room to the primary suite looking very strange. I would prefer the main gable be the dominant one on the south view, and overlap the buildings near it rather than have them cut in (and on top of) that pretty roofline. This is the south facing side of the home above. The first drafter noted the mistake when I pointed it out, but could not offer a solution, and our current architect cut in a hip "finisher" on one side and it doesn't look quite right either.
I'd like to avoid a hip, and would like to keep the pitch and height of the library roof. I wouldn't mind the hallway roof coming down lower with the peak of the library gable peaking thru on the north elevation, in order to tuck that hallway roofline under the great room eaves. Is this possible especially if we are raising the height of the main center gable? Is there another solution?
I realize there are strong (good) opinions on here and I'm willing and eager to hear all ideas, even the critical ones. This is not our first new build, and we enjoy it! It is intended to look like a fairy tale cottage in the forest, so it won't fit most folks needs in terms of style or function.
We are at the 14 month point of what was supposed to be a 2 month design period because our drafter took on too much work and had some personal issues. He had promised 2 weeks and still could not complete and provide construction documents within a 10 month window. I provided all sketches up front, and most measurements for every corner, including the height of each roof. Very few of those directions were followed originally and since we've located a more responsive architect, most of our time has been correcting mistakes made the first go around (also removing windows, if you can believe we had twice as many!). The new guy has been great. But we still cannot figure out that roofline.
Some background if needed:
The first time I designed a home on my own about 10 years ago, someone on Houzz (a very talented someone) claimed it looked like a Disney version of a house. :) He wasn't wrong looking back, but it was an awesome home to live in and we had no regrets - ) Designing our own plans and having a drafter prepare them has worked for us in the past.
We've built and flipped and renovated more times than I can count. I learn something new every time! Of course we are on a budget, like everyone. All our builds have had crazy wide ranges in terms of bids (and it wasn't finishes, it was mostly different trade line items).
We feel confident in our chosen builder, but I want to make this roofline in these 2 spots easier for them without losing the charm.
.
If you feel like commenting on the strange layout, I understand. We have 3 generations (possibly 4) under one roof, and 3 businesses, plus a non-profit library of close to 15k books, within these walls. Excuses excuses. :) The design and floor plan is settled and submitted to the county and the septic permit is well underway. That means no more changes to the footprint. But... we can change the roof!

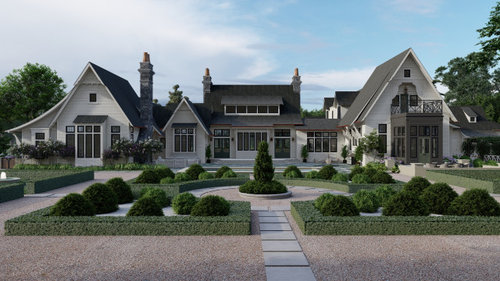

Front (north) view looks pretty good.
South view is where it looks a little strange
Close up of the intersecting roofs
original plan
newest idea (looks okay from above but not from the south view)
floor plan under roof in question
From the front again (north facing). Could the hall roof just be lowered considerably and the library roof peak show more prominently from this view without looking busy?
PS Those gardens in the rendering are just a figment of my imagination and won't ever happen unless I get my knees replaced. :) .Fun to dream of gardens though!
Comments (18)
last yearRelated Discussions
Help - need to chop 90K off my build - Ideas?
Comments (60)I go against the popular opinion here, so take it for what it's worth. Also, I suspect you've already made some decisions, but here goes anyway. If it were me, I would keep the high quality materials and reduce square footage. You can always add on space later, especially if you plan for it now. But cheap quality materials will be a source of regret for you forever. And the house will never, ever give you a feeling of rightness. You will always feel disappointed. What I personally would eliminate (your choices will certainly be different): Drop from a 3 car garage to a 2 car garage Do you really need both a formal living room AND a family room? If you keep both, don't sink the floor of the living room. As someone mentioned it seems very dated, and it is also a bit of a hazard. I have never been in a house that had one and not seen a guest stumble at the threshold at least once. You have a lovely eat-in kitchen and a large dining room. Do you need both? We have not eaten in our formal dining room one single time since we added a large eating area to our kitchen twelve years ago. We entertain frequently, but in the winter everyone gathers in the kitchen and in the summer everyone is out on the back patio. What I would absolutely keep: The porch. It is a wonderful feature and gives your house distinction. Rosefolly...See MoreHelp! New build, power line issue.
Comments (10)Ooops...after getting your hopes up, 15 feet isn't much room. I hate to say it, but you may be stuck with those tiny decorative trees. You want a vertical accent, winter interest, and a "wooded" look as opposed to a decorative flower garden look? The reason I asked about bucket trucks is if a tree is near a road they can still be pruned when they are pretty tall. If they aren't within reach of a road, they become unpranable when they reach a certain size. The reason I asked who owned the land under the lines is the power company may own it, or may just have an easement. Depending on the exact terms of the easement, you may be able to plant the sort of shrubs that grow back from the roots when they get chopped down directly under the lines. Check with your power company or the County Registry of Deeds to find out the details. You could plant: Hophornbeam (Ostrya virginiana) because it is the right size or Crataegus viridis 'Winter King' for the winter interest. You could get Striped Maple (Acer pensylvanicum.) You could get Limber Pine (Pinus flexilis) because it is evergreen and close to the right size. (Warning...I'm not personally familiar with these two trees) You could go for a narrow cultivar or a naturally narrow tree like American Persimmon (Diospyros virginiana ) or Eastern Red Cedar (Juniperus virginiana). (The latter is not super attractive and looks stupid if limbed up but is quite narrow, evergreen and wind resistant)...See MoreNew house build, need low maintenance landscape ideas
Comments (28)Hi all, for some reason I cannot access my old username threedogsmom so I am back to update you on what I have done so far. After moving in an living there for a bit, there is more sun than originally thought in the front yard, so I have planted a variety of evergreens, small trees, and shrubs with a few of the hostas I brought along sprinkled in. Once I have the mulch down (in next 2 weeks) I will post a few pics. I went with the first mock-up drawing in the post above, using an undulating edge for the front yard bed to break up the linear front of the house. We sourced rocks on our property to make the edge with, so it appears like a natural extension of the rock retaining wall. The color scheme overall focuses on burgundy, blue and yellow foliage/needles, with some greens mixed in there as well. Flowering shrubs are in the reddish-magenta color. For small trees, I added a Wolf Eyes dogwood, a Saratoga gingko, a Black Dragon Cryptomeria, and a dwarf columnar blue spruce, as well as a Rising Sun Redbud across the driveway on the other side. In the front entry nook to the left, I filled in with a dwarf Baby Lace japanese maple, 3 blue star junipers, and 5 golden sedges to set the color scheme. Across the walkway, there are 2 June hostas, 3 dwarf barberries, 3 Liberty hostas, Mr Bowling Ball and Fire Chief arborvitae, Amber moon astilbe, a magenta pink hydrangea, Lemon Beauty lonicera, 3 lemon thread mops, a dwarf golden hinoki cypress, purple leaf sand cherry, 2 red drift roses, 2 blue rug junipers to hang over the rock wall, daylilies, 3 dwarf Buzz buddleias interspersed with variegated liriope, golden barberry, 2 Beyond Blue fescue clumps and a Standing Ovation grass. So your eye will see repetition of the red/burgundy, then yellows, then blues as you move around the garden bed. I think it will mature very nicely as time goes on and should offer nice color and structure all year long while still being low maintenance. Pics to follow in a few weeks - working on the mulching this weekend!!...See MoreNeed Help Understanding Roof Design - Concerned with Possible Issue
Comments (29)Sorry for my late reply. At this point we only have a floor plan and no other elevation. Now and thanks to this wonderfull comunity I am understanding it a little bit more and hopefully will be able to ask good questions to them. Now I can see these upgrades were going to add cost us. @cpartist the lot front is 50ft wide (50×150ft) and with the township regulation we can only built a 41 ft wide house. The garage is 20 ft wide, our foyer ( long. Hallway. :( :(..) 7'4" and the study is 12 ft. Wide. the house will have cement board as siding and the developer needs to approve, layout, colour and material ( already dictated by them. ) I have to appologize as I didn't understand the request for more information. If I may, what is the pitch would you suggest? I will post the changes after talking with them. Thanks again...See MoreRelated Professionals
Ken Caryl Architects & Building Designers · Rantoul Home Builders · Fitchburg General Contractors · Fredonia General Contractors · San Elizario General Contractors · Towson General Contractors · Waldorf General Contractors · Four Corners Architects & Building Designers · Terryville Kitchen & Bathroom Designers · Huntersville Furniture & Accessories · Medford Furniture & Accessories · North Bergen Furniture & Accessories · Annandale General Contractors · Keene General Contractors · Norman General Contractors
PROlast yearA "cricket" or "saddle" is the simplest solution to your concern. This sketch is not drawn totally accurate, but hopefully it conveys the solution.
Know that some fairytales can turn into nightmares and things that work in computer renderings (or on paper) do not necessarily work in reality. You will need very skilled rough carpenters to carry out this design successfully. The garden design does not go with the house design.
Dana shebuilds thanked Mark Bischak, Architect
last year
last year- last year
- last year
- last year
- last year
- last year
- last year
- PROlast year
- last year
@Mark Bischak, Architect Yes lol this is the back view of the house - facing south. This is the front approach below
All real
gardens of any style will be on that south side (rear) of the house. I'm not a fan of hostas and ferns except in small amounts, so the front yard won't have a ton of landscaping. Give me all the roses and coneflowers and salvia in the back though. I need sunny locations for longer hours here in Tennessee. In California you could almost grow roses in shade, it was so easy, but not here.
Still important to have proper proportion though, on all sides. Would increasing the height of the center gable building help with that at all, do you think? We need to straighten out the trusses anyway there which means I know I'll need to increase the height to keep the overhang from blocking the windows. Just trying to figure out how much. It's an H shaped plan and that middle bit is the crossbar.
- last year
- last year
last year
Andrew
